HomeTAMCO Enclosure System Standard Enclosure CE Series
Previous product
Wavepro-LT
Back to products
Next product
Standard Enclosure CES Series
Click to enlarge
Tamco

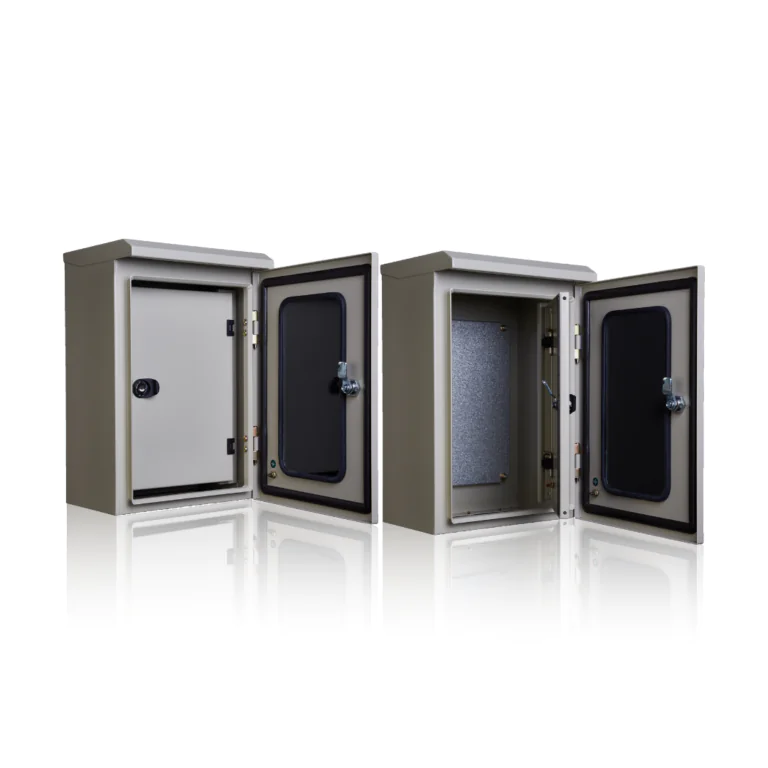

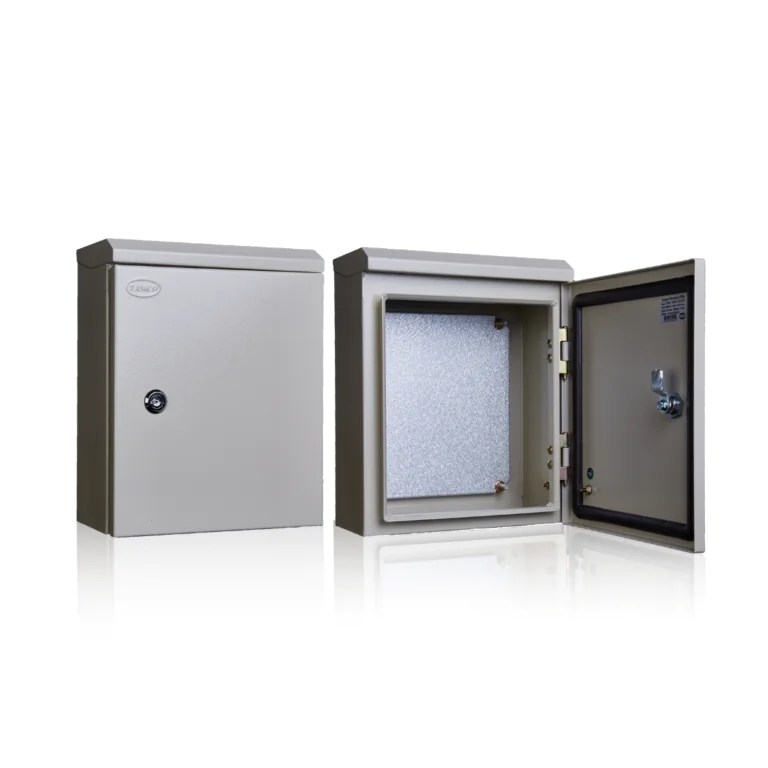

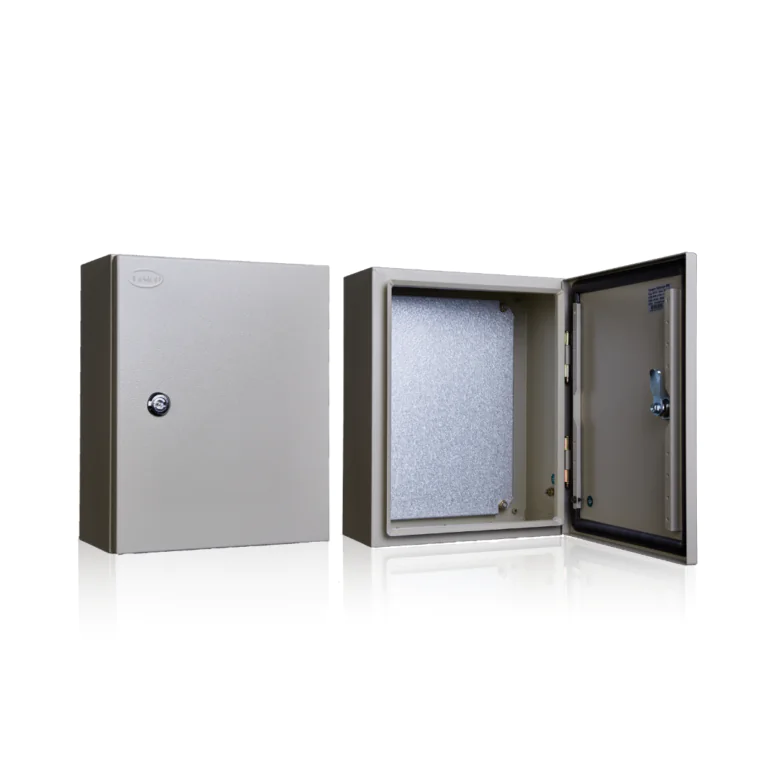

Standard Enclosure CE Series

CE IP55 is a compact enclosure which protects electrical equipment from dust and water spray. With the polyurethane foam gasket, it provides excellent sealing which can provide a high IP rating. It is suitable for both indoor and outdoor purposes. Available in 14 standard sizes.

ตู้มาตรฐานรุ่นใหม่ CE สามารถกันน้ำ กันฝุ่น ได้ถึง IP-55 สามารถใช้ได้ทั้งงานภายในและนอกอาคาร ตัวตู้พ่นสี Polyester ที่สามารถกันแสง UV ได้ มาพร้อมกับแผ่นเพลทเคลือบสังกะสี

Request QuotationDownload Catalog
  • Description
  • Price List
Description

Compact Enclosure: CE IP55

TAMCO CE Series.

ตู้ แทมโก้ CE Series เป็นตู้รุ่นใหม่ล่าสุดทีพัฒนาจาก ตู้แท้มโก้ CB เดิมที่เป็นที่รู้จักกันมานานกว่า 20ปี คุณภาพสูง มีหลายขนาดให้เลือกตามความต้องการ

Material Electro-Galvanized Steel (EG) Aluminium-Zinc
Coated Steel (Aluzinc)
Size Enclosure Frame Door Gland Plate Mounting Plate
CE-01 to CE-11 1.2 mm. 1.5 mm. 1.2 mm. 1.5 mm.
CE-12 to CE-14 1.5 mm. 1.5 mm. 1.5 mm. 2.0 mm.
Finished Surface Polyester powder coated
with UV protection paint RAL-7032
Aluminium-Zinc
Coated Steel (Aluzinc)
Protection Rating IP55
Supply Include Gland plate and Door with PU gasket seal / Double bit lock with key
Price List

รุ่น Model ขนาดตู้ Dimensions เพลทยึดอุปกรณ์ Mounting Plate จำนวนล็อก Door handle lock Qty. น้ำหนัก Approx. Weight (Kg.) ราคาต่อหน่วย Unit Price (Baht)
Width Height Depth W1 H1
CE-01 280 350 150 230 314 1 6.20 950.00
CE-02 300 450 150 250 414 1 8.00 1,250.00
CE-03 300 450 200 250 414 1 9.00 1,400.00
CE-04 350 450 200 300 414 1 9.90 1,500.00
CE-05 350 500 200 300 464 2 10.00 1,650.00
CE-06 400 500 200 350 464 2 10.18 1,800.00
CE-07 450 600 250 400 564 2 15.90 2,100.00
CE-08 500 600 250 450 564 2 17.00 2,400.00
CE-09 550 700 250 500 664 2 20.50 2,850.00
CE-10 630 750 250 580 714 2 24.00 3,300.00
CE-11 630 900 250 580 864 2 28.00 3,850.00
CE-12 700 1100 250 650 1064 2 44.20 7,300.00
CE-13 800 1200 300 750 1164 2 53.00 9,200.00
CE-14 900 1200 300 850 1164 2 62.00 10,100.00
