Since Spectra Series* Busway is lighter than wire and conduit, it’s easier to handle and hang. Its compact design is ideal for applications where space is critical and eliminates the time-consuming tasks of stripping, preparing and pulling wire. All of these advantages translate into lower delivery costs, simple storage and handling, lower total installed costs, and increased space for more equipment.
Applications:
- Medium to large commercial & industrial applications
- Indoor, Drip-proof IP43, Splash-proof IP54, and Outdoor IP65, IP66 enclosures
- Not for hazardous locations
- Not designed to be imbedded in the ground or in concrete
Features and Benefits:

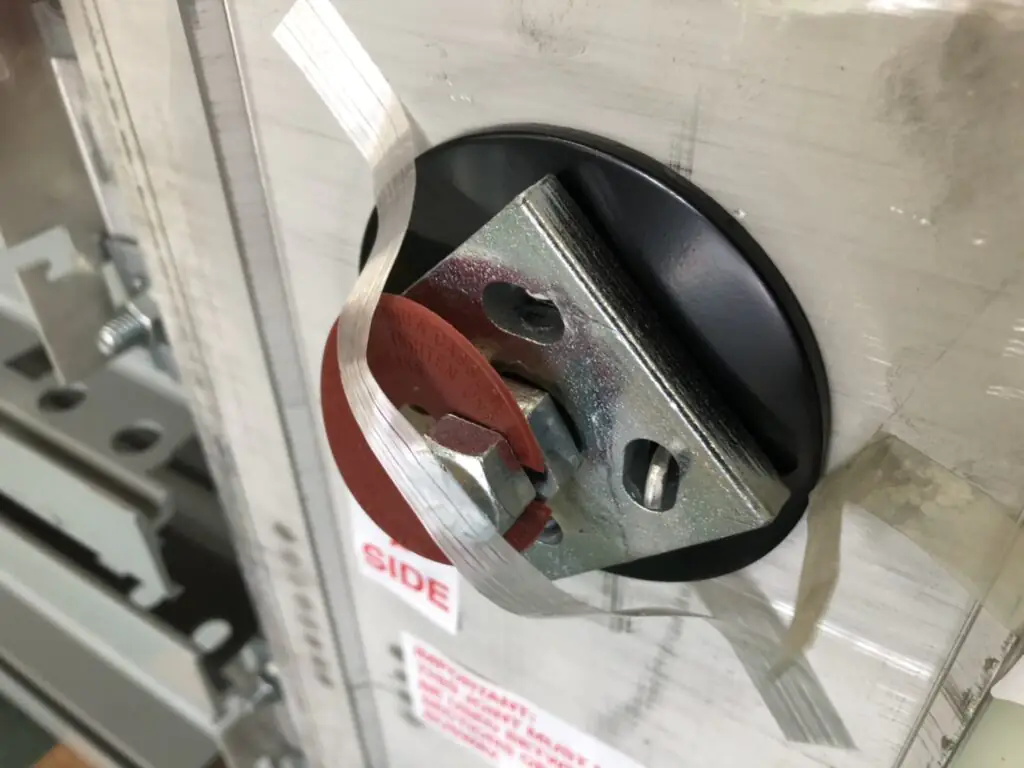

- New Joint Guard Protection System dynamically indicates proper joint tension through color for easy installation and maintenance.
- Lighter Weight mean faster installation than with other busway and lower installed cost that cable and conduit.
- Field-adjustable isolation joint allows for ±½” per joint providing flexibility on the job-site.
- Plug-assist allows for faster, easier installation of plugs which provide power to downstream devices.
- Exclusive Blue coat Epoxy Insulation provides the industry’s longest insulation life of 50++ years.
- Earth-Bond Integral Housing Ground provides a lower resistance ground path than internal ground bars.
- Aluminum Housing with Sandwich Design – GE was the first to break the weight barrier with an aluminum housing that is up to 50% lighter than other Busway
- DC Applications
Product Scope:
- Conductor : Aluminum or Copper
- Operating Voltage: Low Voltage (600V or less) Sandwich Busway
- Rated Current: 225-5000A amperes
- Standard: UL 857, NEMA BU-1, CSA
- Short Circuit Ratings: up through 200 kA for 3 cycles
Benefits of busway over wire and conduit:
- Lower installed cost
- Smaller size, lighter weight
- Better efficiency
- No cutters, benders, oils, jellies, grease, scrap or cable reels
- Future expansion flexibility
- Higher short-circuit ratings
- Lower voltage drop
- Higher integrity and reliability
Key features:
Aluminum Housing
Spectra Series* Busway features an Aluminum housing that cuts busway weight up to 50% – reducing installation costs.

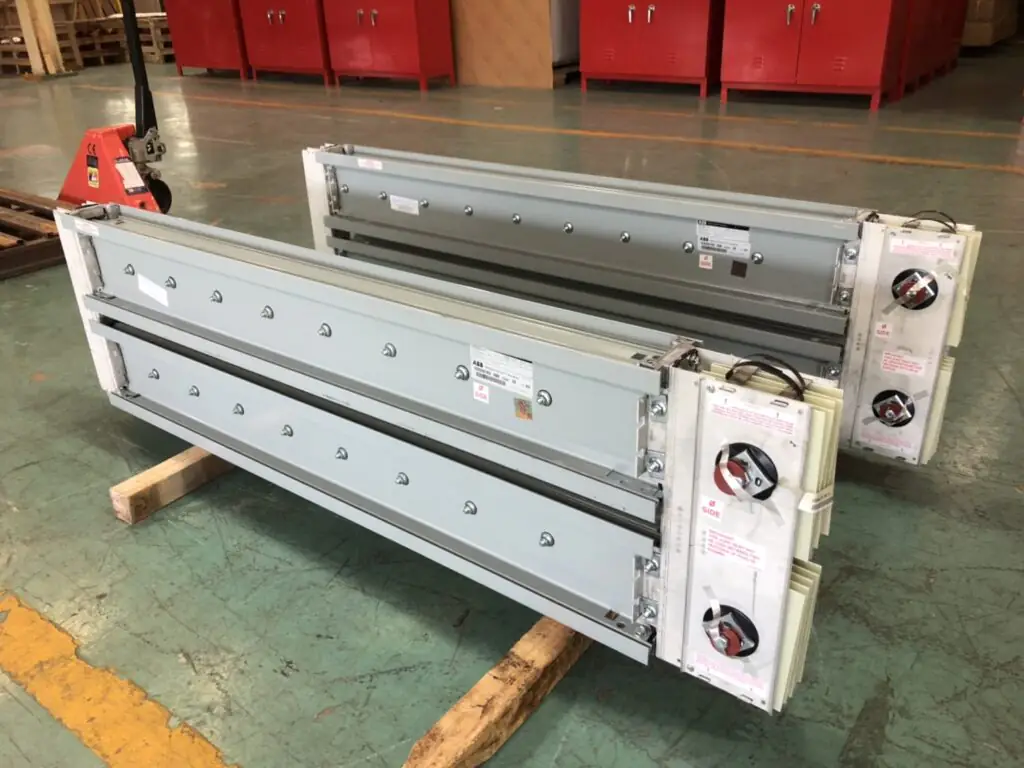

Straight length feeder
(Custom color)

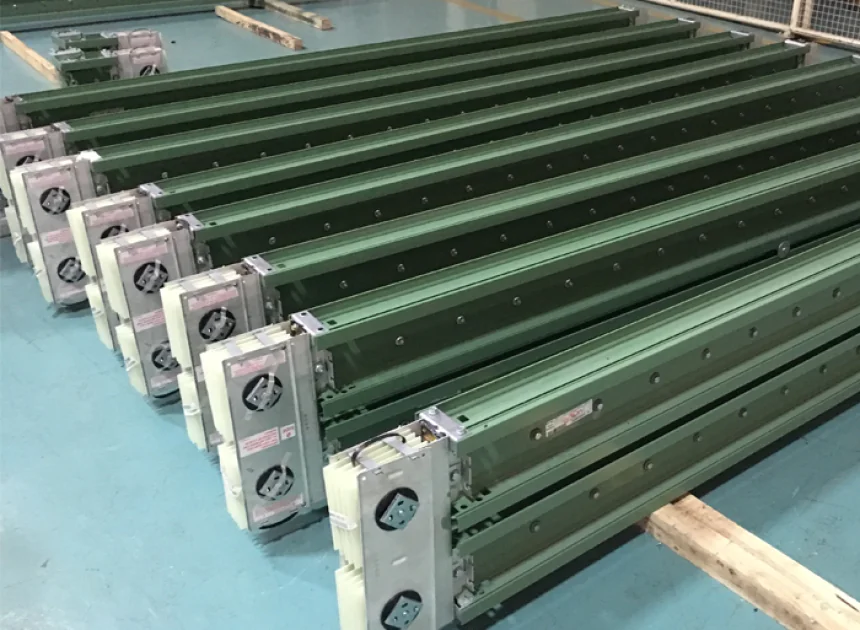

Straight length feeder
(Standard Color ANSI-61)

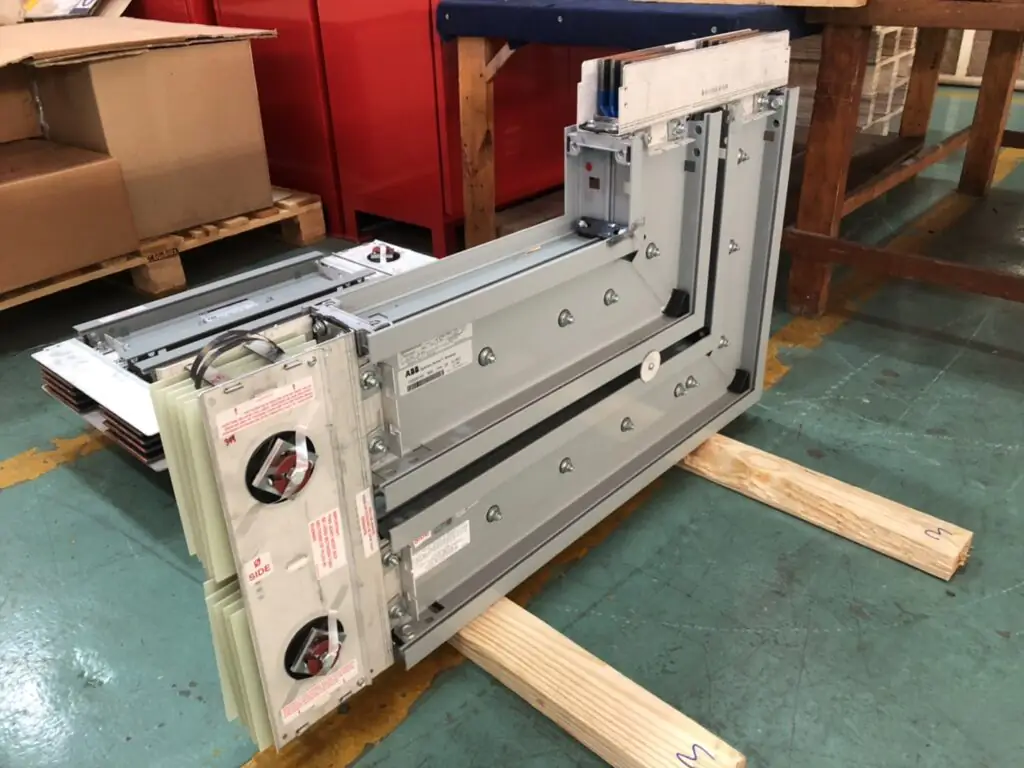

Flat Elbow/Flanged-End
Edgewise Joint Elbow

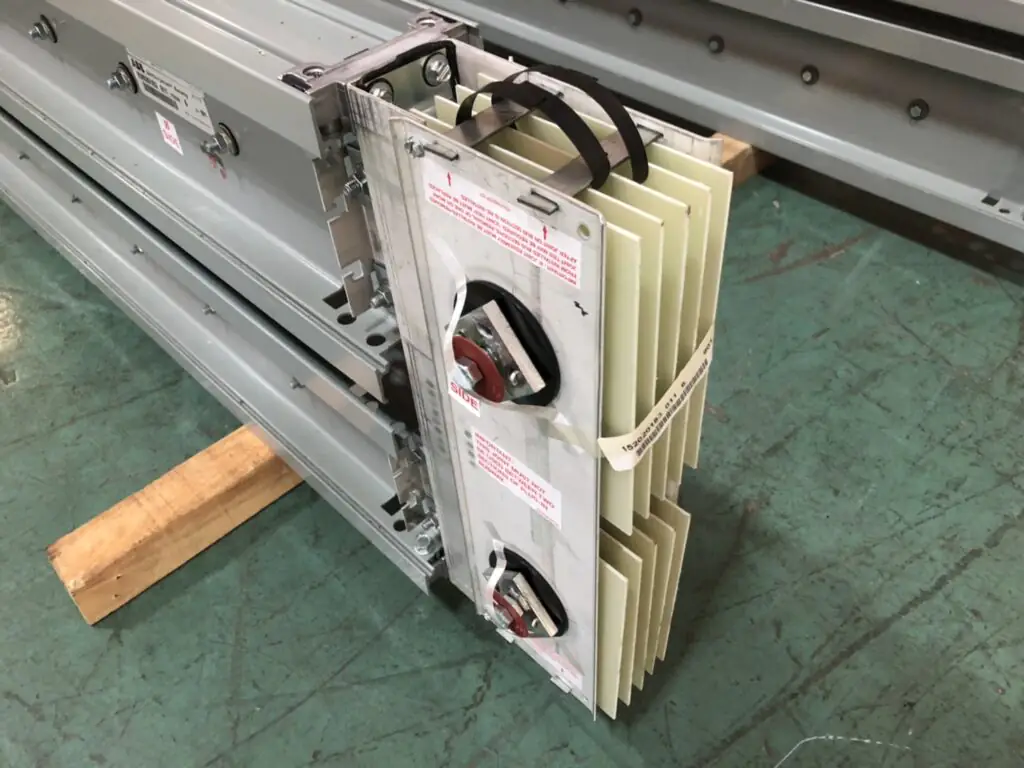

Bus Joint
Flex-A-Joint removable isolation joints allow individual sections to be conveniently taken out of service with minimum downtime or interruption of power. Accepts Flex-A-TapTM bolted power take-off devices up to 1600 amps at every joint, plugin or feeder.
Bus Duct Installation & Services:
Installation Work at site
งานออกแบบและติดตั้งโดยทีมงานที่ชำนาญ
Copper Flexible Bus Bar
บัสบาร์ทองแดงแบบถักชุปด้วยดีบุก สำหรับต่อกับหม้อแปลงหลายขนาด

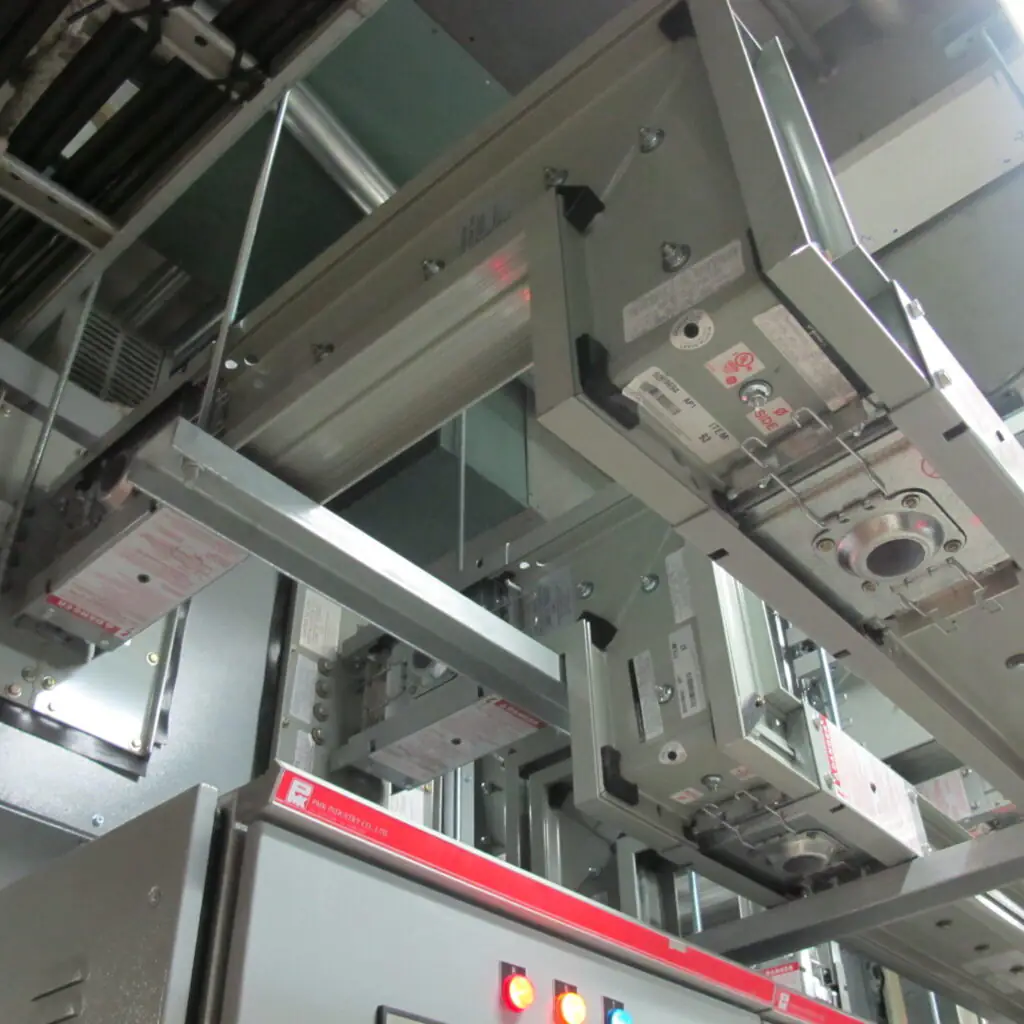

Switchgear Termination
บัสบาร์สำหรับต่อกับตู้สวิทช์เกียร
