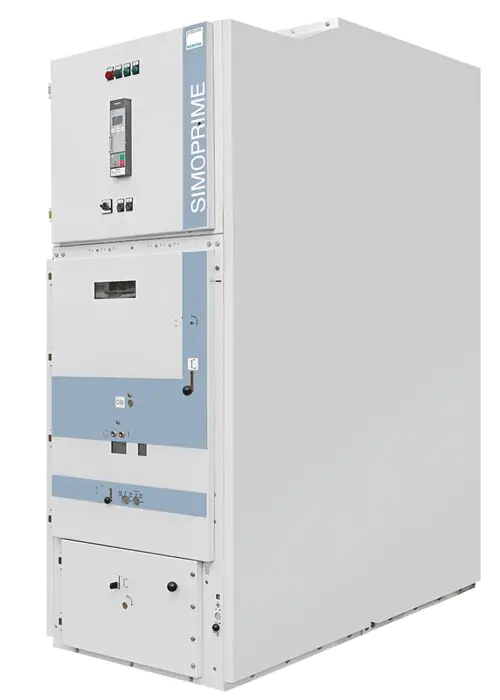

SIMOPRIME

SIMOPRIME Medium-Voltage Switchgear

Medium Voltage Type-tested Switchgear up to 17,5kV 3600A 40kA





Request QuotationDownload Catalog
  • Description
Description

SIMOPRIME switchgear, up to 17.5 kV/40 kA / 3600A

Feature:

  • Factory‐assembled, type‐tested switchgear according to IEC 62271‐200
  • Interlockings between high‐voltage door and switching devices
  • Rack‐in, rack‐out operations of the circuit‐breaker truck with high‐voltage door closed
  • Metallic, earthed shutters and partitions, partition class: PM (metallic partition)
  • Use of metallic, earthed shutters and partitions between the compartments
  • Highest loss of service continuity of the switchgear (LSC2B according to IEC 62271‐200) during maintenance
  • Internal arc tested design according to IEC 62271‐200, 17.5 kV up to 40 kA, 1 s
  • Internal arc tested design according to IEC 62271‐200, 24 kV, up to 25 kA, 1 s
  • Use of maintenance‐free vacuum circuit breakers
  • Flexibility due to two types of withdrawable unit design
  • Withdrawable (cassette) type* – Truck type
  • Easy production of SIMOPRIME switchgear due to basic design without need of complex jigs and fixtures
  • Safe operation due to high-voltage door closed during all switching operations,
  • including emergency manual operations
